Trench Drain Installation in Markham

Markham is the third-largest city in the GTA and the most master-planned. Cornell, Cathedraltown, Berczy, and Wismer were all built to a single registered drainage scheme, while Old Markham Village and Unionville pre-date that approach. The right outlet depends on which Markham you're working in.

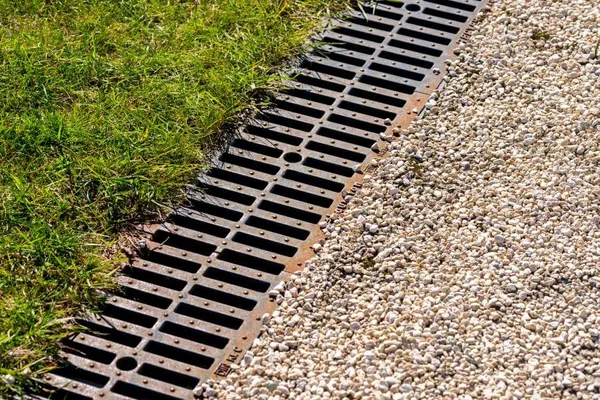

Trench drain installation at a Markham home
  • Since 1991 (35+ yrs)
  • Master Plumber Licensed
  • HomeStars Top Rated
  • Serving the GTA from Richmond Hill
What we install

Trench drain work across Markham

Almost everything we install in Markham involves the registered drainage plan in some way — even retrofit jobs in finished hardscape have to respect the original surface scheme.

Install Process

How a trench drain goes in

Six on-site steps from the first cut to a flush, water-tight finish. Same sequence on every job — what changes is length, materials, and crew size.

  1. 01

    Plan & Mark

    Marking the trench drain run across a garage opening
    • Identify water flow direction
    • Mark full drain run across the opening
    • Confirm outlet location and slope (~1%)
  2. 02

    Excavate Trench

    Trench cut and excavated for the drain channel
    • Cut and remove concrete or asphalt
    • Trench wider and deeper than the channel
    • Maintain consistent slope toward the outlet
  3. 03

    Prepare Base

    Compacted gravel base prepared for the channel
    • Add compacted gravel or concrete base
    • Set elevation using string line or laser
    • Base supports full channel length
  4. 04

    Install Channel

    Channel sections set continuously across the trench
    • Place channel sections across full trench
    • Connect end-to-end with no gaps
    • Align slope and elevation across the run
  5. 05

    Concrete & Backfill

    Concrete poured around the channel body
    • Pour concrete around both sides of channel
    • Maintain proper thickness and support
    • Finish surface flush with surrounding slab
  6. 06

    Grate & Finish

    Grate installed and flush with the finished slab
    • Secure the grate into the channel
    • Ensure flush finish with the slab
    • Final check: water flows cleanly into drain
Markham-specific

Master-planned drainage and the Rouge watershed

Markham is unusually disciplined about subdivision drainage — most newer neighbourhoods come with a registered plan that dictates where every roof drain, lot grade, and surface outlet has to go. Layer the Rouge National Urban Park boundary in east Markham on top, and you have two compliance angles to satisfy on a single job.

Registered plan

Cornell, Cathedraltown, Berczy Village

The major Markham subdivisions were each engineered as a unit. Lot grades and outlet locations were set at the planning stage, and the City of Markham building department checks against that plan when permits are pulled. We work within the plan, not around it.

Conservation review

Rouge National Urban Park boundary

Cornell and the streets east of 9th Line border the Rouge National Urban Park. Drainage work on or near the regulated area can need TRCA review and, in a small number of cases, Parks Canada coordination.

Shared drainage

Townhouse and freehold complexes

A meaningful share of Markham housing is townhouse-style with shared drainage that crosses common elements. The condo or freehold-corporation board has to sign off on a drainage cut before we touch the slab, and we factor the approval timeline into the quote.

Older retrofit

Old Markham Village and Unionville cores

The historic cores pre-date the current registered-plan approach. Drainage there is a function of what was actually installed, often decades ago. We trust the surface and on-site evidence over any current servicing drawing.

Coverage

404 corridor east of HQ

Markham is 15 to 30 minutes east of our shop via the 404 or 407, slightly longer for Cornell and Box Grove on the eastern side. Wismer and Greensborough are usually under 20 minutes off-peak.

We hold quotes to fixed appointment windows and the lead who runs the site visit also runs the install — important on Markham jobs because the registered drainage plan often gets discussed on site, and the person making those calls needs to be on the cutting day too.

  • Drive from HQ 15–30 min
  • Quote slot Fixed window
  • Plan review Before we quote
Coverage

Neighbourhoods we serve in Markham

  • Unionville
  • Cornell
  • Berczy Village
  • Cathedraltown
  • Box Grove
  • Wismer
  • Greensborough
  • Old Markham Village
  • Milliken Mills
  • Buttonville
FAQ

Common questions about trench drains in Markham

Why is the registered drainage plan such a big deal in Markham?

Because most of the city was built under one. Cornell, Cathedraltown, Berczy, Wismer, and Greensborough each have a stormwater scheme that the original developer engineered as a whole — lot grades, catch basin placement, even where roof leaders discharge. A trench drain that ignores that plan ends up either flooding a neighbour's lot or getting flagged at permit time.

Is my property near the Rouge a problem?

Not a problem, but it's an extra step. Cornell, Box Grove, and the streets east of 9th Line border Rouge National Urban Park. Drainage work in regulated areas can need TRCA review and occasionally Parks Canada awareness. We check the regulated-area mapping before quoting.

I live in a townhouse complex — can you still cut a trench drain?

Usually yes, but the corporation board has to approve. Townhouse drainage often crosses common elements, and the strata or condo paperwork governs whether the cut is allowed. We can help draft the request, but the approval timeline is on the corporation, not us.

Old Markham Village home — what's different?

Much of the housing in the old core pre-dates standardized site-servicing plans. Drainage is whatever someone installed at the time, possibly modified several owners ago. We hose-test the actual surface and open a small inspection cut before committing to outlet routing.

Does Markham have its own basement-flood subsidy?

Not a city-specific one comparable to Toronto's Basement Flooding Protection Subsidy. York Region runs other water-related programs that change from year to year, but Markham itself doesn't have a dedicated flood subsidy. We focus quotes on the actual drainage fix rather than waiting on a subsidy that may not apply.

How quickly can you get to a Cornell or Cathedraltown site?

Most east-Markham sites are 25 to 30 minutes from us via the 407, faster off-peak. Wismer, Berczy, and Unionville are usually inside 20 minutes. Active flooding is prioritized same-day.
