Trench Drain Installation in Mississauga

Mississauga is the largest GTA city outside Toronto, and the variety of neighbourhood styles here means each install starts with figuring out which Mississauga we are working in. Lakeshore retrofit feels nothing like a Meadowvale subdivision, and the commercial scale around the City Centre is a different game again.

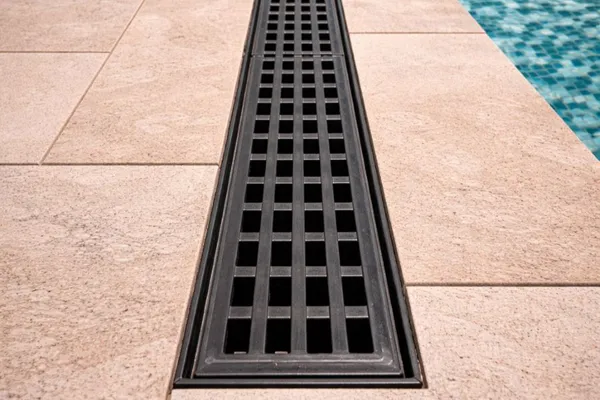

Trench drain installation at a Mississauga home
  • Since 1991 (35+ yrs)
  • Master Plumber Licensed
  • HomeStars Top Rated
  • Serving the GTA from Richmond Hill
Install Process

How a trench drain goes in

Six on-site steps from the first cut to a flush, water-tight finish. Same sequence on every job — what changes is length, materials, and crew size.

  1. 01

    Plan & Mark

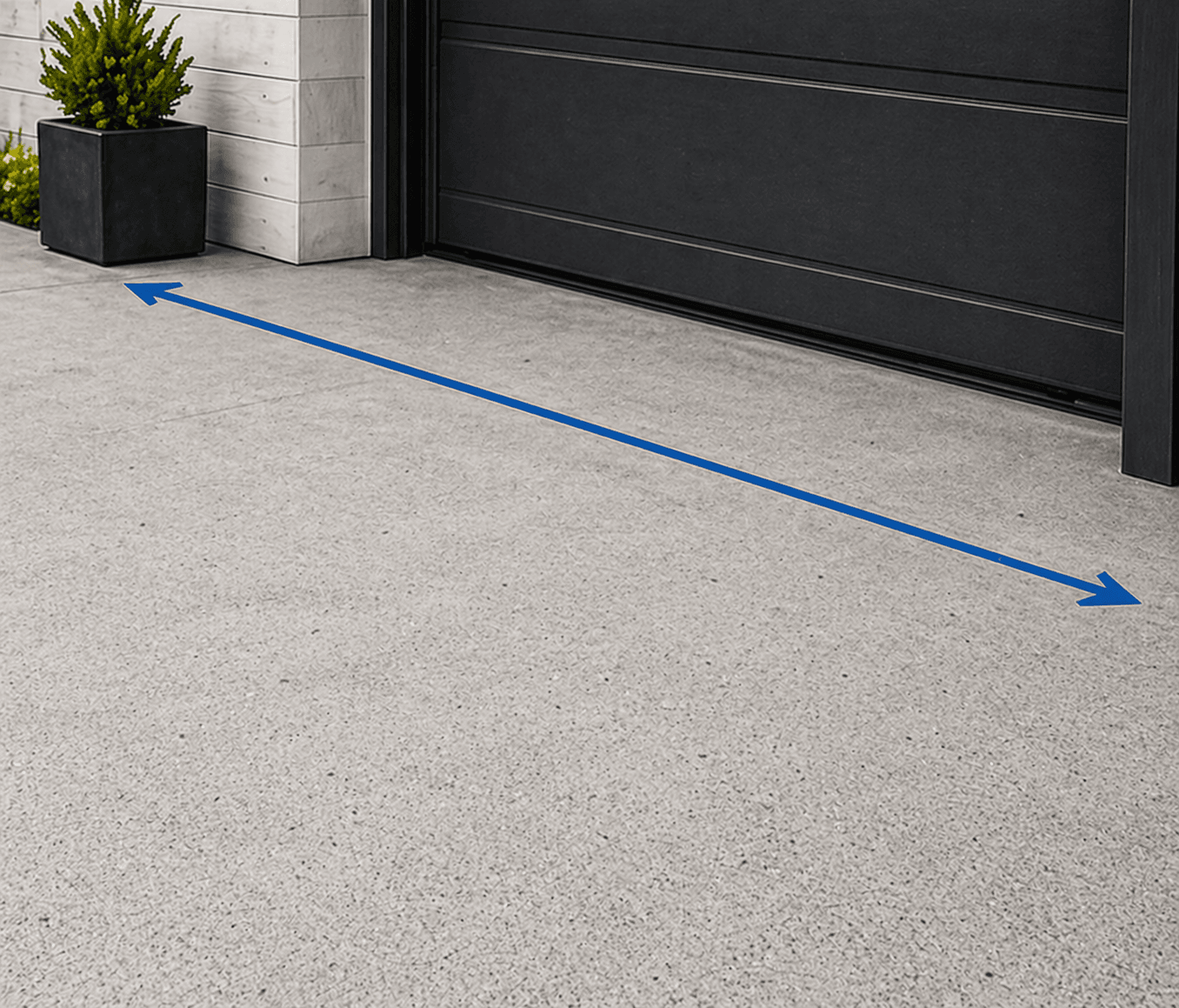

    Marking the trench drain run across a garage opening
    • Identify water flow direction
    • Mark full drain run across the opening
    • Confirm outlet location and slope (~1%)
  2. 02

    Excavate Trench

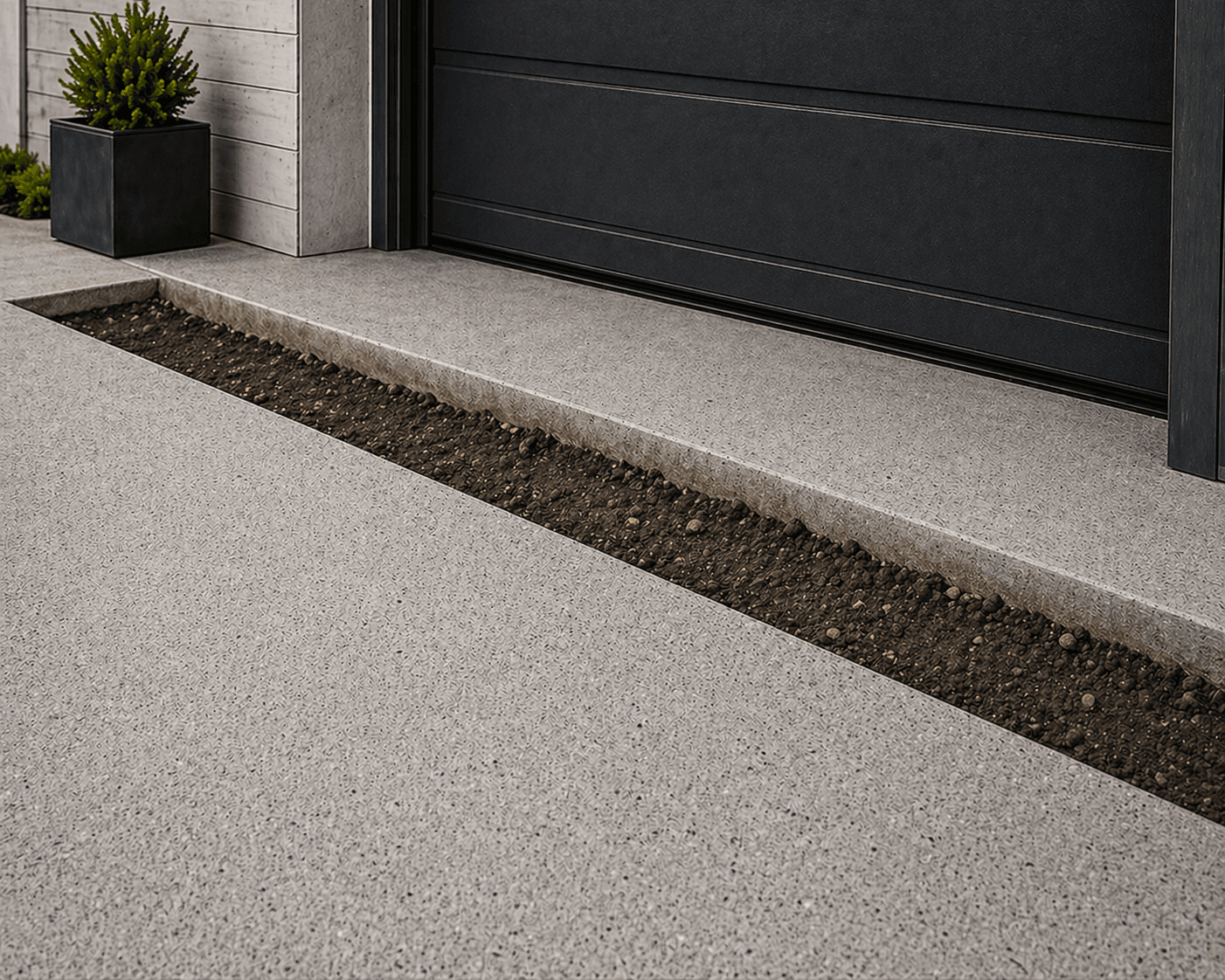

    Trench cut and excavated for the drain channel
    • Cut and remove concrete or asphalt
    • Trench wider and deeper than the channel
    • Maintain consistent slope toward the outlet
  3. 03

    Prepare Base

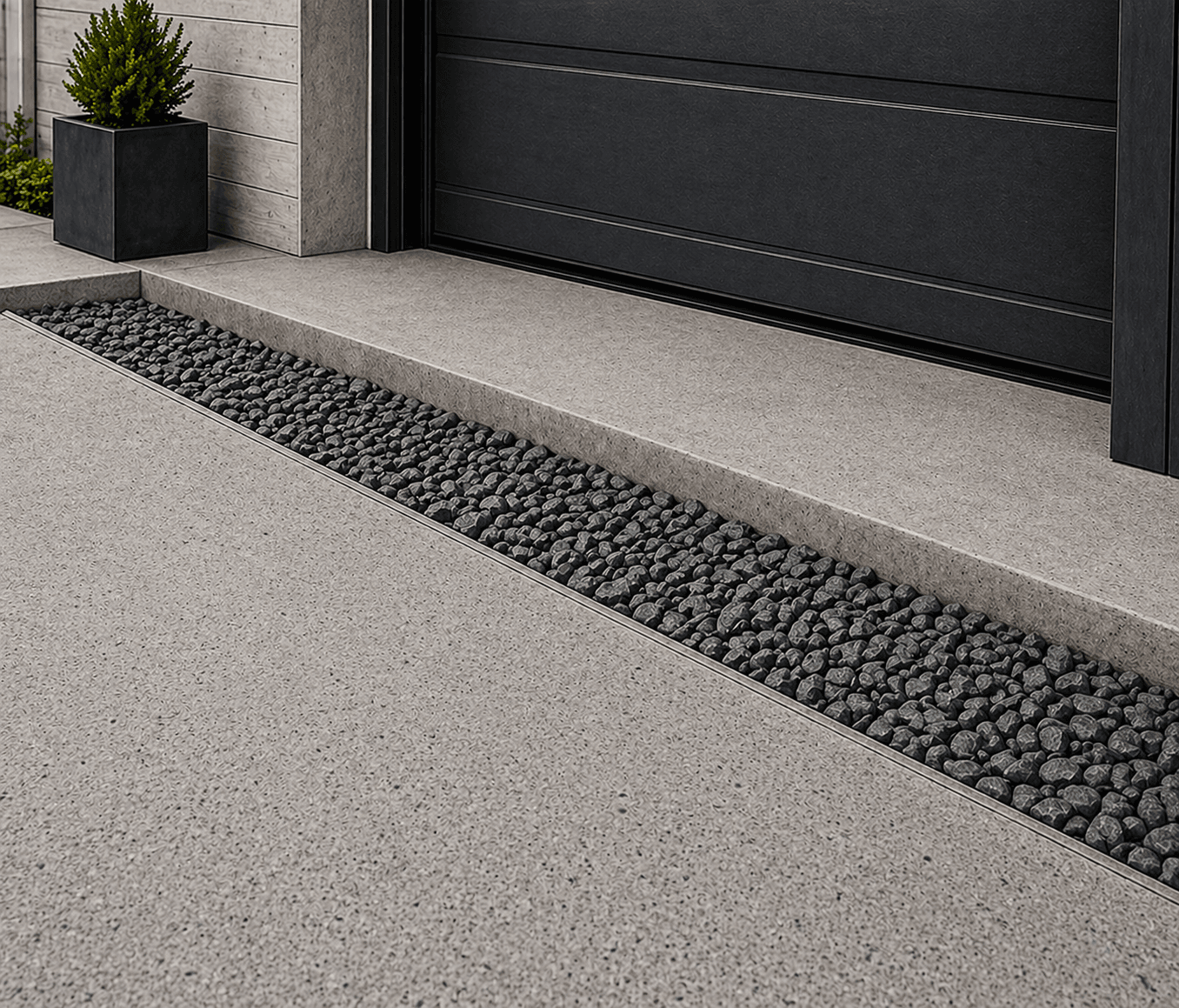

    Compacted gravel base prepared for the channel
    • Add compacted gravel or concrete base
    • Set elevation using string line or laser
    • Base supports full channel length
  4. 04

    Install Channel

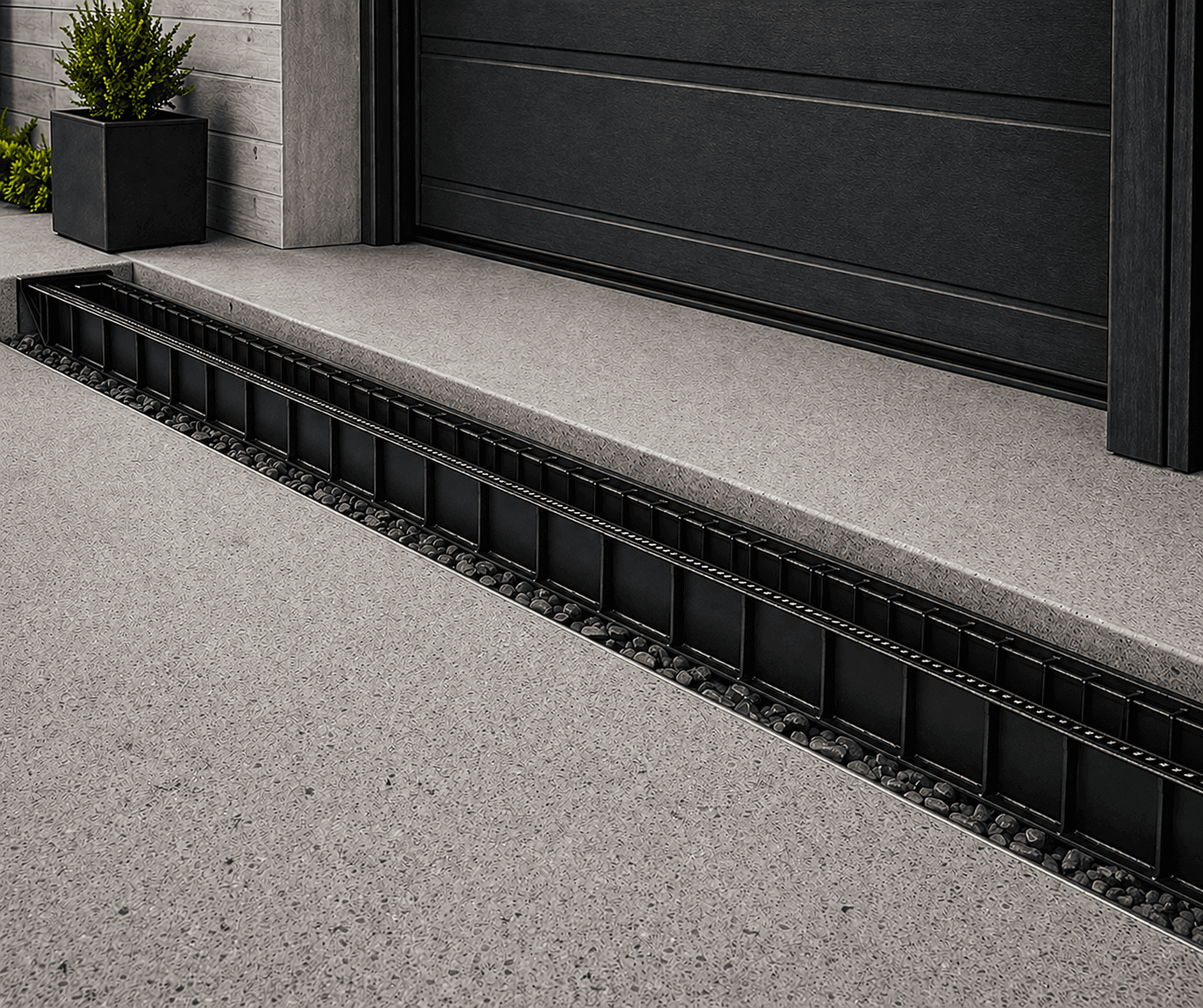

    Channel sections set continuously across the trench
    • Place channel sections across full trench
    • Connect end-to-end with no gaps
    • Align slope and elevation across the run
  5. 05

    Concrete & Backfill

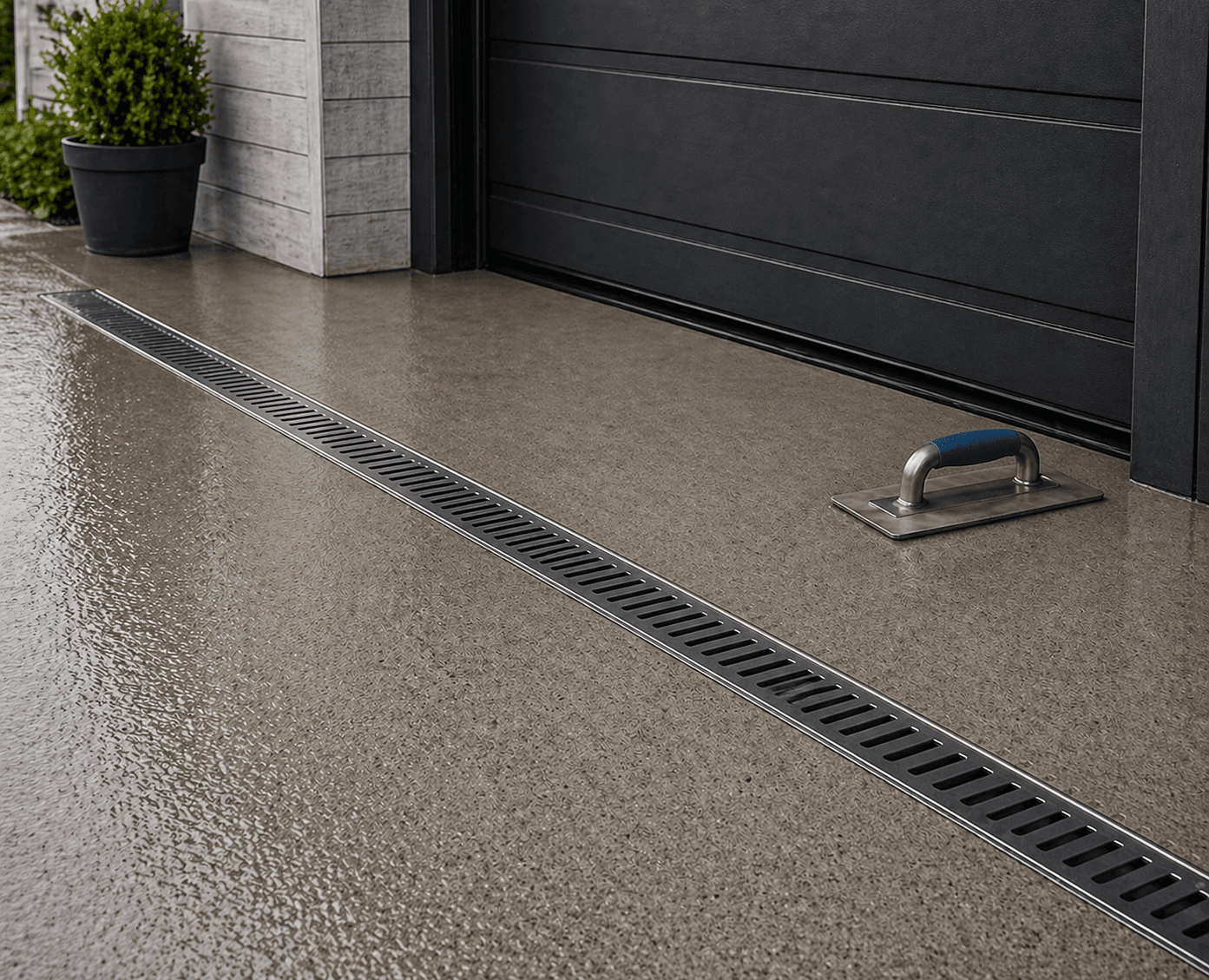

    Concrete poured around the channel body
    • Pour concrete around both sides of channel
    • Maintain proper thickness and support
    • Finish surface flush with surrounding slab
  6. 06

    Grate & Finish

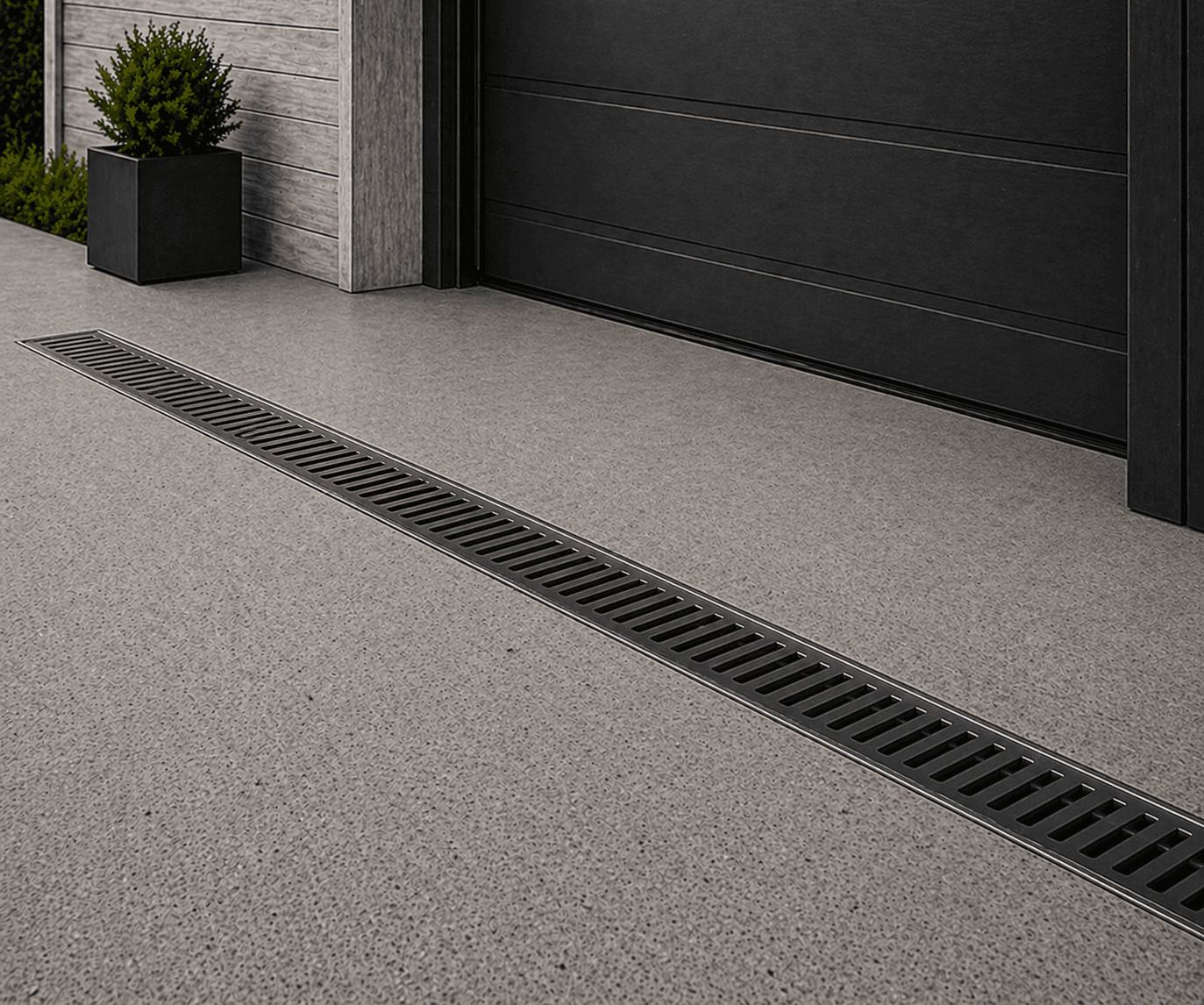

    Grate installed and flush with the finished slab
    • Secure the grate into the channel
    • Ensure flush finish with the slab
    • Final check: water flows cleanly into drain
Mississauga-specific

Region of Peel, Credit Valley, and the lakeshore reality

Mississauga sits in the Region of Peel — completely separate from Toronto Water — and a meaningful chunk of the city falls under Credit Valley Conservation jurisdiction. Layered on top are the lakeshore neighbourhoods where high water table and mature trees make outlet planning a real exercise.

Regional authority

Region of Peel handles water and sewer

The Region of Peel — not the City of Mississauga and not Toronto Water — sets water and wastewater servicing standards across the city. The City of Mississauga issues local building permits. The split decides which department handles which approval, and we coordinate both.

Conservation review

Credit Valley Conservation jurisdiction

Properties along the Credit River corridor — through Streetsville, Erin Mills, and the western half of the city — fall under Credit Valley Conservation regulation. CVC review is more common than TRCA work in Mississauga and adds time to the quote-to-install cycle.

Lakeshore reality

Port Credit, Mineola, Lorne Park

High water table, mature canopy trees, and decades of incremental property modifications mean the original servicing drawing rarely tells the whole story. We open a small inspection cut on most lakeshore retrofits before committing to an outlet route.

Subsidy may apply

Region of Peel flood-prevention programs

The Region of Peel runs homeowner subsidy programs for flood-prevention work — backwater valves, sump pumps, related fixtures. Programs and dollar amounts shift year to year, so we confirm what's currently active during the site visit. Trench drainage on its own isn't directly subsidized but can support an eligible scope.

Coverage

Longest run, but the schedule absorbs it

Mississauga is one of our longer reaches — 35 to 55 minutes from Richmond Hill via the 407 westbound, or up the 401 / DVP depending on traffic. We schedule Mississauga days as full-day visits where possible, so the drive doesn't eat into the install window.

The crew lead who walks the site is the lead who cuts. With Mississauga jobs that's particularly useful, because outlet decisions made during the lakeshore inspection cut tend to lock the spec — and you want the same person making the call on dig day.

  • Drive from HQ 35–55 min
  • Visit length Full-day blocks
  • Inspection cut Common pre-quote
Coverage

Neighbourhoods we serve in Mississauga

  • Port Credit
  • Streetsville
  • Erin Mills
  • Meadowvale
  • Cooksville
  • Lorne Park
  • Clarkson
  • Sheridan
  • Mineola
  • Mississauga City Centre
FAQ

Common questions about trench drains in Mississauga

Does Mississauga use the same rules as Toronto?

No, completely separate framework. Mississauga is in the Region of Peel. Water and wastewater servicing comes through Peel; local building permits come through the City of Mississauga; Toronto Water rules and the Toronto Basement Flooding Subsidy do not apply at all.

What's Credit Valley Conservation and why does it matter?

CVC is the conservation authority covering the Credit River watershed. A meaningful chunk of Mississauga — Streetsville, parts of Erin Mills, Meadowvale, and the western lakeshore — falls under their regulation. Drainage work in regulated areas may need CVC review before construction, which adds to the quote-to-install timeline.

Are Port Credit or Mineola homes harder to drain?

Different, not harder. The lakeshore neighbourhoods have high water tables, mature trees with extensive root systems, and decades of small property modifications that the city plan doesn't capture. We typically open a small inspection cut before committing to an outlet — it pays for itself in avoided rework.

Are there flood-prevention subsidies in Mississauga?

The Region of Peel runs homeowner programs for flood-prevention work — backwater valves, sump pumps, and related fixtures. Specific programs and dollar amounts change year to year, so we confirm what's currently available during the site visit. Trench drainage on its own usually isn't subsidized, but it can be part of an eligible scope.

Can you handle commercial sites in the City Centre or along Hurontario?

Yes, including dock aprons, loading lanes, and forecourt drainage along the QEW and Hurontario corridors. Commercial work usually involves site-plan-approval drainage that touches both Region of Peel and the City of Mississauga; we coordinate the approvals as part of the scope.

How fast can you get to a Mississauga site?

35 to 55 minutes from us depending on the destination and traffic. Erin Mills and the City Centre are usually under 45 minutes; the lakeshore and Streetsville run 50 minutes plus. For active flooding we prioritize same-day, but the longer drive sometimes pushes us to first-thing next morning instead.
